IHF Lined Fluorine Centrifugal Pump for Corrosive Chemical Transfer
The IHF lined fluorine centrifugal pump combines fluoroplastic wetted parts with metal reinforcement for reliable transfer of strong acids, alkalis and organic solvents from -20 to 160°C.
IHF Lined Fluorine Centrifugal Pump for Corrosive Chemical Transfer
Reliable transfer for strongly corrosive chemical media
The IHF lined fluorine centrifugal pump is designed for continuous chemical-process duties where ordinary metal pumps may suffer rapid corrosion. The impeller, pump cover and other wetted components use fluoroplastic materials such as PTFE, FEP or PFA and are formed by an integral sintering process. A metal insert reinforces the fluoroplastic structure, giving the pump the chemical resistance of fluoropolymers together with the mechanical support needed for industrial operation.

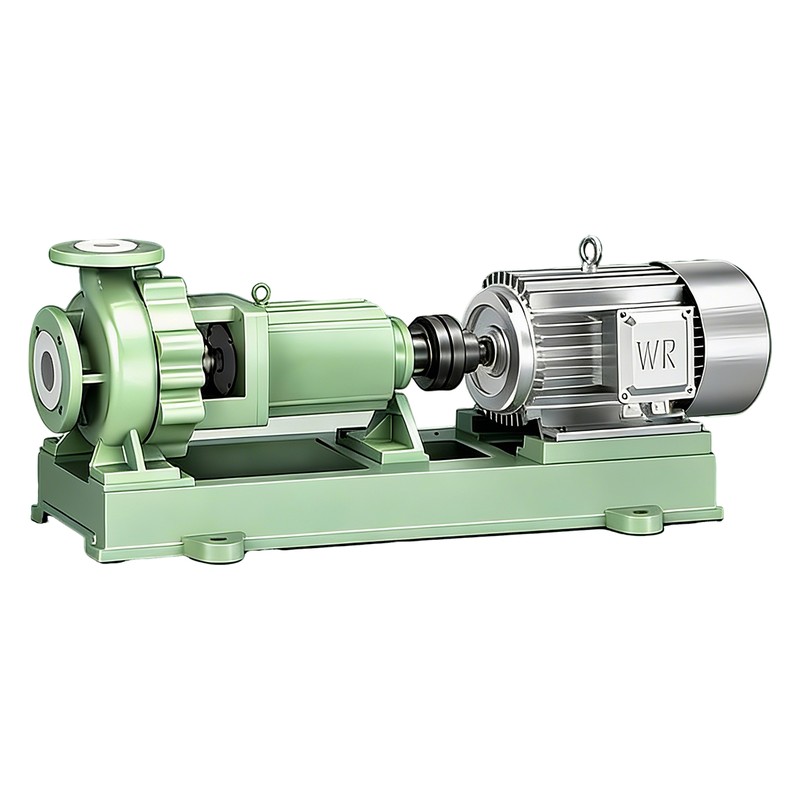

IHF pump assembled product view for industrial project selection.

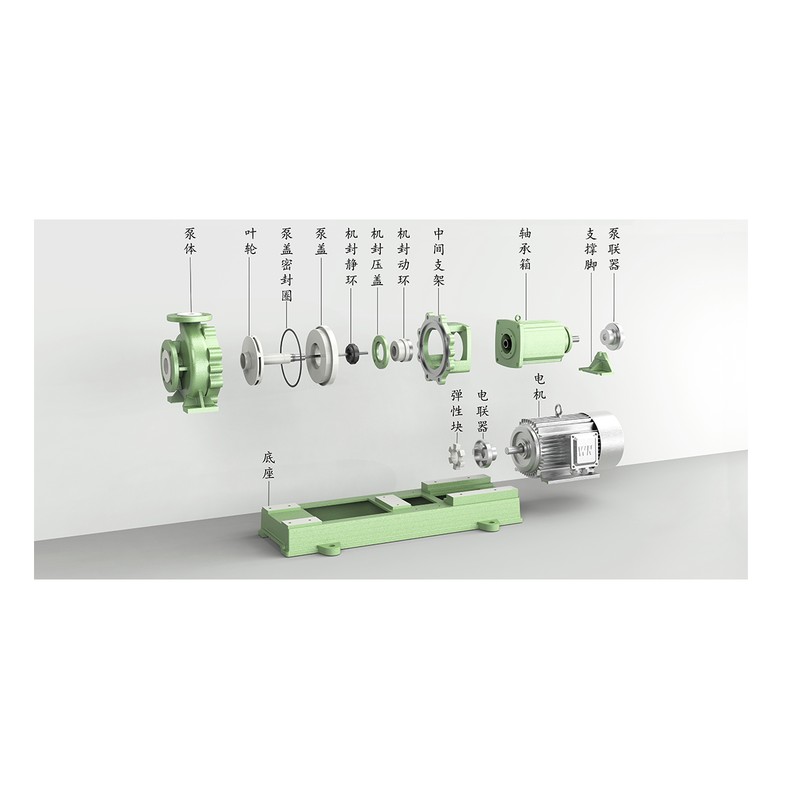

IHF pump internal structure and component reference.

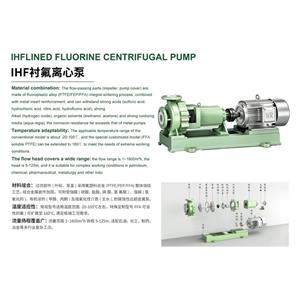

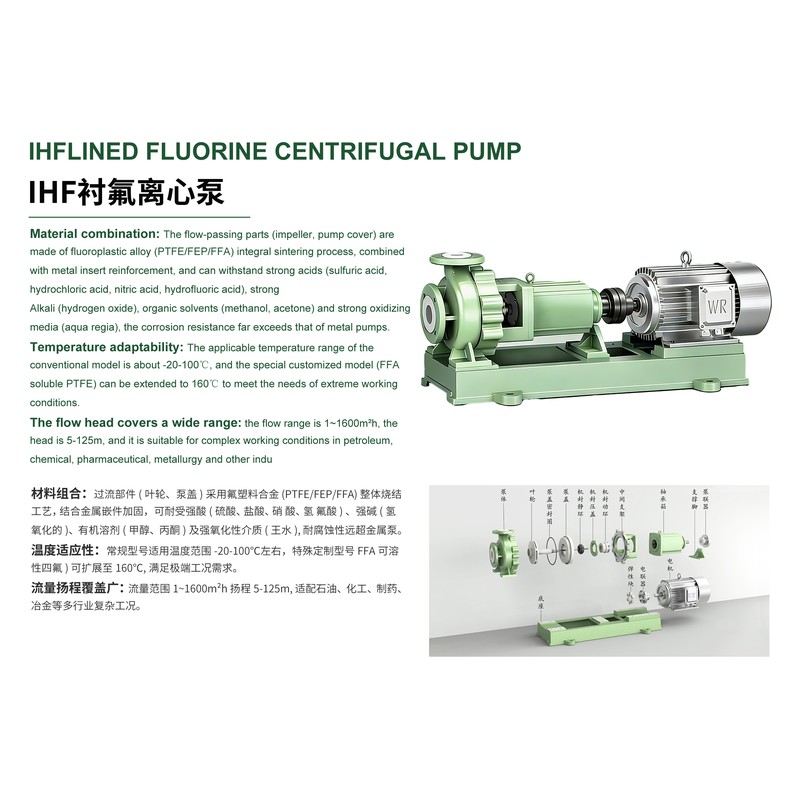

IHF pump series overview and technical selection reference.
Why Choose The IHF Series
The IHF lined fluorine centrifugal pump provides broad resistance to acids, alkalis, organic solvents and strong oxidizing liquids. Typical compatible media include sulfuric acid, hydrochloric acid, nitric acid, hydrofluoric acid, sodium-hydroxide solutions, methanol, acetone and aqua regia. Final material selection must always be checked against concentration, temperature, solids content and the complete operating condition.
Integral fluoroplastic construction helps protect the liquid-contacting surfaces. Metal reinforcement improves dimensional stability and pressure support. The horizontal centrifugal layout is familiar to plant operators and can be integrated into transfer, circulation and process-feed systems. The separated pump and motor arrangement also makes routine inspection of the rotating assembly straightforward.
Operating Range
The published series range covers flow rates from 1 to 1600 m³/h and heads from 5 to 125 m. Conventional configurations are suitable for approximately -20 to 100°C. Special PFA configurations can be selected for temperatures up to 160°C when the actual medium and working condition have been confirmed. These are series limits rather than the duty point of every size; the correct model must be selected from the required flow, head, temperature, specific gravity and system curve.
Applications
The IHF lined fluorine centrifugal pump is suitable for corrosive liquid transfer in petroleum processing, chemical manufacturing, pharmaceutical production, metallurgy, fine chemicals, chlor-alkali production, electroplating and industrial wastewater systems. Common duties include tank unloading, acid transfer, process circulation, reactor feeding and transfer between storage and production equipment.
Material And Media Selection
Fluoroplastic wetted parts are especially useful where metallic corrosion is the main risk. PTFE, FEP and PFA options allow the IHF lined fluorine centrifugal pump to be matched to different temperature and chemical-resistance requirements. Elastomers, gaskets and sealing arrangements must also be selected for the actual medium. Please provide the chemical name, concentration, temperature, density, viscosity and any suspended solids when requesting a quotation.
Selection Notes
A reliable selection begins with the real operating point, not only the pipe diameter. Confirm the normal and maximum flow, total dynamic head, inlet condition, installation elevation, motor frequency, power supply and ambient environment. For hot liquids or liquids close to their vapor pressure, available NPSH and suction piping require special attention. For media containing crystals or particles, specify particle size and concentration so the passage and materials can be reviewed.
Installation And Operation
Install the pump on a rigid, level foundation and align the coupling before operation. Suction piping should be short, adequately supported and free from trapped air. Flush the line when construction debris may be present. Never operate the IHF lined fluorine centrifugal pump dry. Before start-up, confirm the rotation direction, fill the pump as required, open the relevant valves in the correct sequence and monitor vibration, noise, bearing condition and discharge pressure.
Service Support
Shanghai Gaotian supplies IHF lined fluorine centrifugal pump configurations for different chemical duties. Share the duty point and medium data with our team for model selection, material confirmation and motor matching. Product photographs show the assembled pump, the exploded structure and the source brochure overview so buyers can understand both the external arrangement and internal construction.
Buyer Checklist
Required flow rate and total dynamic head under the actual pipe layout.
Liquid name, chemical concentration, temperature, density and viscosity.
Solids content, particle size or crystallization tendency when applicable.
Suction condition, installation position and expected continuous running time.
Motor voltage, frequency, protection grade and hazardous-area requirement.
Export packing, documentation, spare parts and delivery schedule.
FAQ
How should buyers choose the correct IHF pump?
Send the required flow, total head, liquid condition, installation drawing or photos and expected operating hours. Shanghai Gaotian can compare nearby sizes and recommend a practical configuration.
Can the IHF pump be customized?
Yes. Wetted material, motor, connection, base, protection accessories and documentation can be discussed according to the operating condition and project standard.
Where can buyers request a quotation?
Use the contact page to send the duty data and project requirements.
