TCL Stainless Steel Magnetic Drive Pump for Corrosive Liquids
The TCL stainless steel magnetic drive pump combines a fully static magnetic-coupling seal with 304 or 316L wetted parts for leak-free chemical transfer from -20 to 180°C.
TCL Stainless Steel Magnetic Drive Pump for Corrosive Liquids
Leak-free magnetic-drive performance with strong stainless-steel construction
The TCL stainless steel magnetic drive pump combines a metallic process casing with a fully static sealing structure. A magnetic coupling transfers torque from the motor to the internal rotating assembly without a conventional shaft passing through the containment boundary. This design removes the dynamic mechanical seal that is a common leakage point in traditional chemical pumps and supports clean, enclosed transfer of difficult liquids.

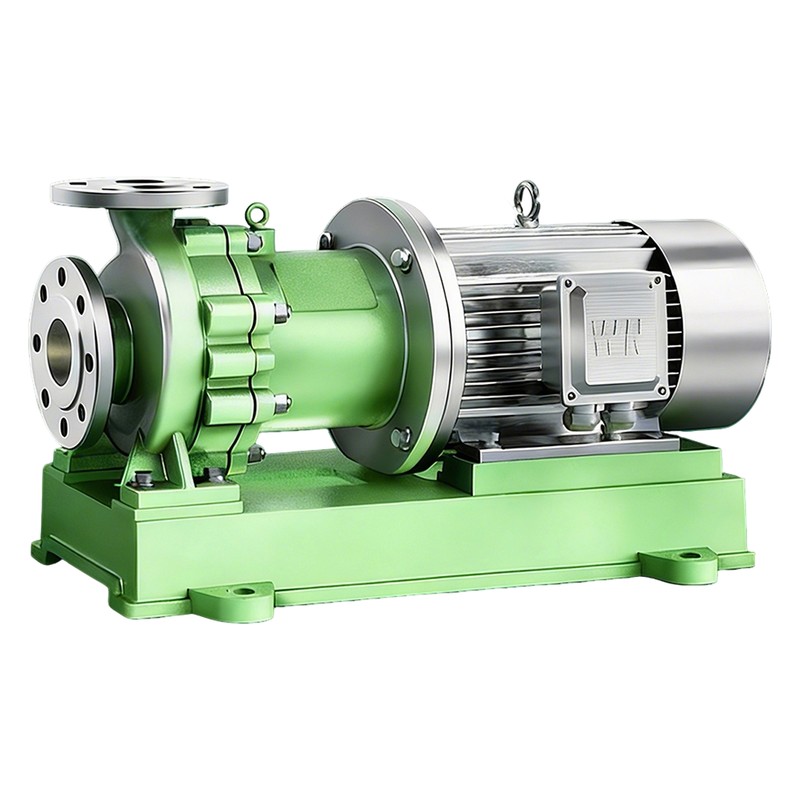

TCL pump assembled product view for industrial project selection.

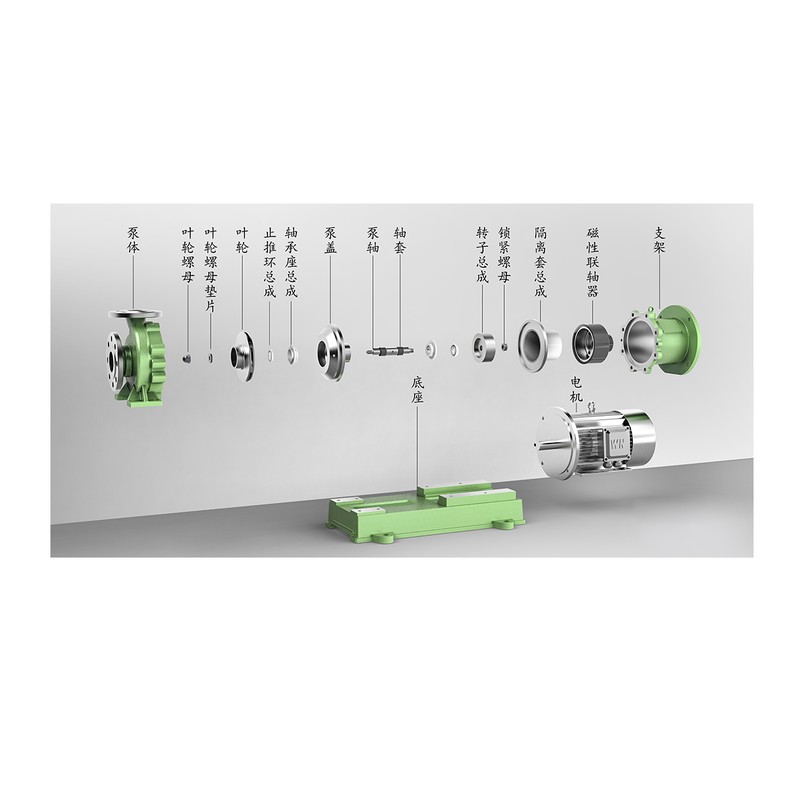

TCL pump internal structure and component reference.

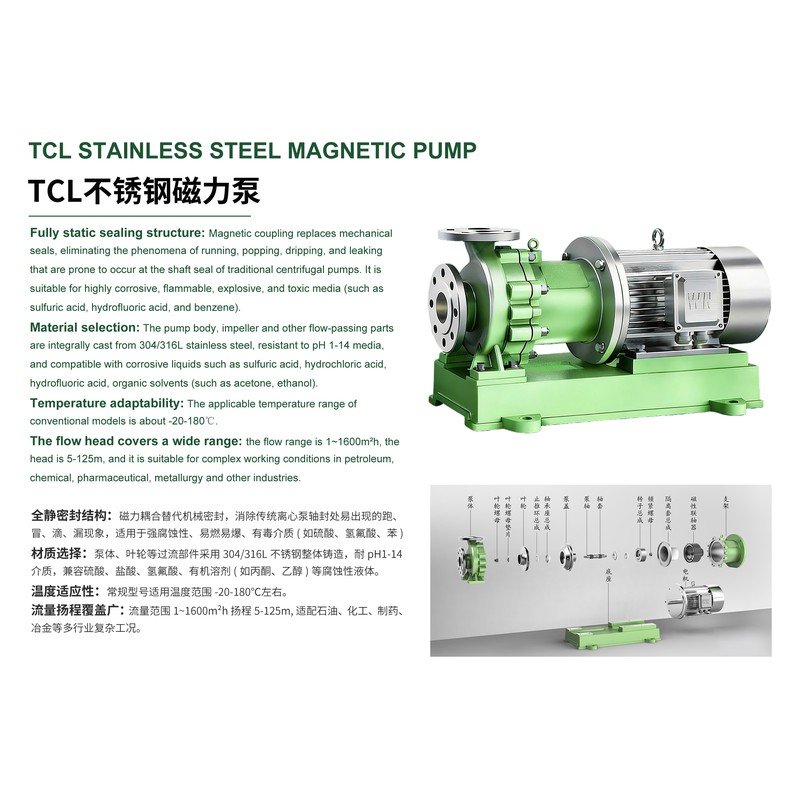

TCL pump series overview and technical selection reference.
304 And 316l Wetted Options
Pump body, impeller and other liquid-contacting components are available in 304 or 316L stainless steel. The TCL stainless steel magnetic drive pump can be evaluated for liquids across pH 1-14, including selected sulfuric-acid, hydrochloric-acid and hydrofluoric-acid services as well as organic solvents such as acetone and ethanol. Compatibility varies with concentration, temperature and impurities, so every application requires a specific material review.
Temperature And Hydraulic Range
The published TCL series covers flow rates from 1 to 1600 m³/h and heads from 5 to 125 m. Available configurations are intended for working temperatures from -20 to 180°C. These figures represent the range of the full series, not the guaranteed duty of each individual size. The selected TCL stainless steel magnetic drive pump must be checked against its performance curve and the real system conditions.
Why Use A Stainless-Steel Magnetic Pump
Stainless-steel construction offers mechanical strength, temperature capability and a clean metallic flow path. Magnetic drive technology reduces the likelihood of external leakage associated with a rotating shaft seal. Together, these features make the pump useful for valuable, hazardous or odor-sensitive liquids where containment matters. The design is also well suited to systems that require a robust metal pump rather than a lined fluoroplastic construction.
Industrial Uses
The TCL stainless steel magnetic drive pump can serve chemical manufacturing, pharmaceuticals, petrochemicals, fine chemicals, metallurgy, electroplating, new-energy production and wastewater treatment. Common duties include solvent transfer, reactor feed, tank unloading, process circulation, filter circulation and transfer of compatible acids or alkalis in closed production systems.
Operating Protection
A magnetic drive arrangement depends on the process liquid for internal cooling and lubrication. Dry running can cause rapid damage and must be prevented. Excessive particles, crystallizing liquids, high viscosity or poor inlet conditions can also affect reliability. Appropriate level switches, flow monitoring, temperature protection or operating interlocks should be considered according to the process risk and plant standard.
Data Needed For Selection
Provide the required flow and total head together with the liquid name, composition, concentration, temperature, density, viscosity and particle content. Include suction pressure, installation elevation, operating schedule, motor voltage, frequency and any hazardous-area requirement. With this information, the TCL stainless steel magnetic drive pump can be sized for the actual system instead of being chosen only by connection diameter.
Installation Guidance
Mount the unit on a level, rigid base. Keep the suction piping short, airtight and adequately sized. Support all pipework independently to avoid stress on the pump connections. Clean and flush new piping before commissioning. Fill and vent the pump, confirm rotation and establish the correct valve positions before start-up. During operation, monitor pressure, motor current, noise, vibration and temperature.
Maintenance Practice
Inspect the pump at intervals suited to the medium and operating hours. If the liquid can crystallize or solidify, flush the wetted passage after shutdown using a compatible method. Never introduce a cleaning fluid that may react with process residue. Changes in sound, current or discharge pressure should be investigated promptly because they may indicate inlet restriction, dry running, blockage or internal wear.
Shanghai Gaotian Support
Shanghai Gaotian supplies TCL stainless steel magnetic drive pump configurations for different chemical-transfer duties. The gallery provides an assembled product view, an exploded construction view and the source brochure overview. Send complete duty data to receive assistance with hydraulic selection, stainless-steel grade and motor configuration.
Buyer Checklist
Required flow rate and total dynamic head under the actual pipe layout.
Liquid name, chemical concentration, temperature, density and viscosity.
Solids content, particle size or crystallization tendency when applicable.
Suction condition, installation position and expected continuous running time.
Motor voltage, frequency, protection grade and hazardous-area requirement.
Export packing, documentation, spare parts and delivery schedule.
FAQ
How should buyers choose the correct TCL pump?
Send the required flow, total head, liquid condition, installation drawing or photos and expected operating hours. Shanghai Gaotian can compare nearby sizes and recommend a practical configuration.
Can the TCL pump be customized?
Yes. Wetted material, motor, connection, base, protection accessories and documentation can be discussed according to the operating condition and project standard.
Where can buyers request a quotation?
Use the contact page to send the duty data and project requirements.
