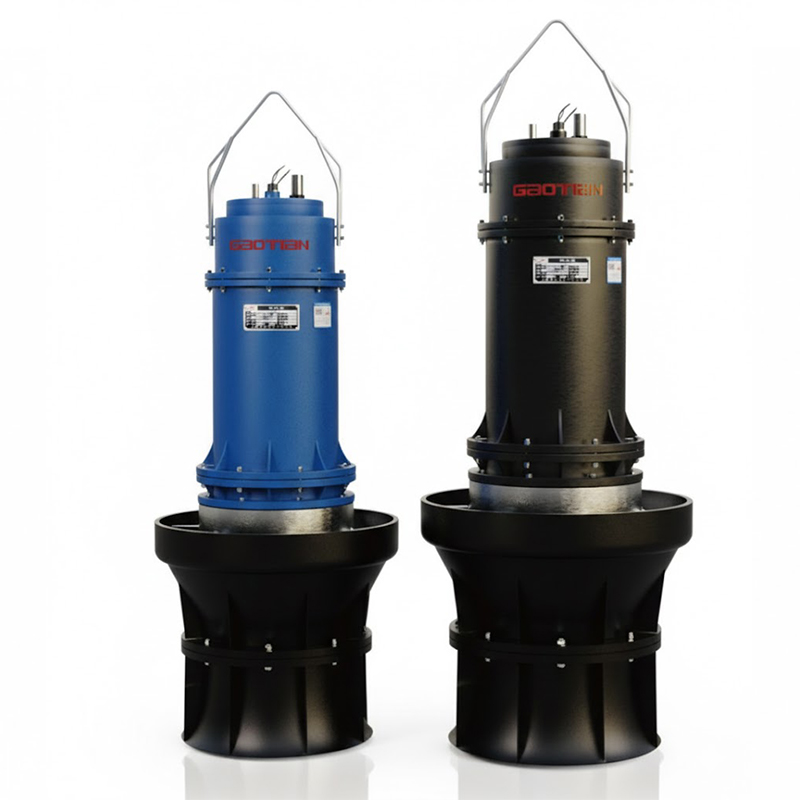

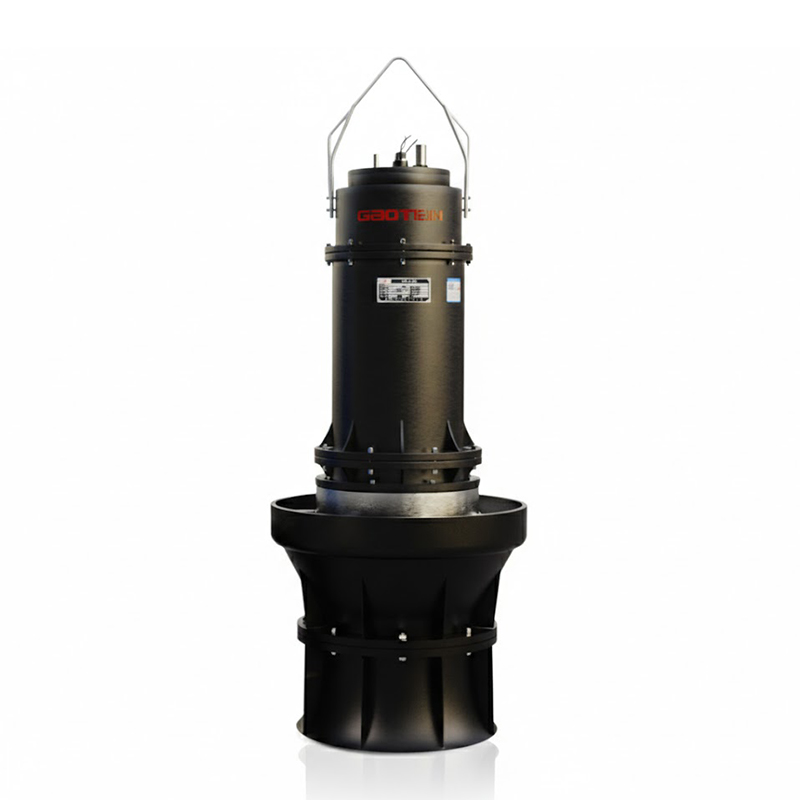

Permanent Magnet Synchronous Flood Pump
- GAOTIAN
- Shanghai
- 7-15days
- 20000 sets
Permanent Magnet Synchronous Motor Axial Flow Pumps are high-efficiency, low-head, high-flow pumps designed for flood control, drainage, and irrigation. Powered by permanent magnet synchronous motors, they deliver large flow rates (250–1000 m³/h) with stable performance, lightweight construction, and energy-saving operation. Ideal for emergency flood response, agricultural water transfer, and municipal drainage systems.
Product Detail Introduction
Overview
The Permanent Magnet Synchronous Motor Axial Flow Pump is a high-flow, low-head pumping solution engineered for flood control, irrigation, and industrial water transfer. Utilizing an axial flow impeller paired with a permanent magnet synchronous motor, this pump delivers exceptional efficiency, rapid startup, and stable performance even under variable load conditions.
Designed and manufactured by Shanghai Gaotian Pump Manufacturing Co., Ltd., a leading pump expert in China, these pumps are built for durability, portability, and high-volume water movement. With flow rates ranging from 250 to 1000 m³/h and heads from 8 to 16 meters, they are perfect for emergency flood drainage, agricultural irrigation, municipal water supply, and industrial applications.
Key features include:
✅ Permanent magnet motor – Energy-efficient, fast response, and stable torque
✅ Axial flow design – Maximizes water flow with minimal energy loss
✅ Lightweight & portable – Easy to transport and deploy in emergency situations
✅ Wide application range – Suitable for flood control, irrigation, and industrial water systems
Product Advantages
Advantage | Description |
|---|---|
High Flow & Low Head | Delivers 250–1000 m³/h flow with 8–16 m head, ideal for rapid drainage and irrigation. |
Energy Efficiency | Permanent magnet motor reduces power consumption by up to 15% compared to traditional pumps. |
Quick Deployment | Lightweight design allows for easy transportation & fast setup in flood emergencies. |
Stable Performance | Maintains consistent flow even with variable water levels or loads. |
Durable Construction | Corrosion-resistant materials ensure long service life in harsh environments. |
Versatile Use | Suitable for flood control, agriculture, municipal water supply, and industrial drainage. |
Product Specifications
Parameter | 11kW | 15kW | 18.5kW | 22kW | 27kW | 30kW | 37kW | 48kW | 55kW |
|---|---|---|---|---|---|---|---|---|---|
Model | 6SZO250-8-11 | 85ZO470-7-15 | 8SZQ440-9-18.5 | 85ZO540-10-22 | 85ZQ660-10-22X | 85ZQ600-8-22 | 85ZO560-12-27 | 10SZQ800-8-30 | 10SZ0800-10-37 |
Flow Rate (m³/h) | 250 | 440 | 540 | 540 | 600 | 600 | 500 | 800 | 800 |
Outlet Size (inch) | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 10 |
Head (m) | 8 | 7 | 9 | 10 | 8 | 8 | 12 | 8 | 10 |
Max Head (m) | 15 | 15 | 15 | 15 | 12 | 15 | 18 | 12 | 15 |
Motor Power (kW) | 11 | 15 | 18.5 | 22 | 22 | 22 | 27 | 30 | 37 |
Pump Weight (kg) | 21 | 26/38 | 27 | 29 | 25 | 29 | 60 | 38/47 | 38/47 |
Cable Weight (20m, kg) | 6/12.5 | 6/12.5 | 10/18 | 10/18 | 10/18 | 10/18 | 10/18 | 16/25 | 16/25 |
Dimensions (cm) | 25×28×57 | 25×28×57 | 25×28×57 | 25×28×57 | 25×28×45 | 25×28×60 | 25×28×57 | 28×28×68 | 28×28×68 |
Packing Size (cm) | 42×45×65 | 42×45×65 | 42×45×65 | 42×45×65 | 42×55×55 | 42×65×65 | 42×45×65 | 42×45×75 | 42×45×75 |
Application Scenarios
Flood Control & Emergency Drainage
Rapidly removes excess water from urban streets, farmlands, and low-lying areas during heavy rain or river flooding.
Essential for government flood response teams, municipalities, and disaster relief.
Agricultural Irrigation
Efficiently transfers large volumes of water for crop irrigation, paddy fields, and orchards.
Reduces manual labor and improves farming productivity.
Municipal Water Supply
Supports temporary water supply in construction sites, events, and urban infrastructure projects.
Can be used for pond emptying, reservoir management, and water recycling.
Industrial Water Transfer
Suitable for cooling systems, wastewater management, and process water circulation in factories.
Handles high-volume, low-pressure industrial water needs.
Disaster Relief & Humanitarian Aid
Deployed in natural disaster zones (typhoons, hurricanes, tsunamis) for quick flood mitigation.
Used by NGOs and emergency services for rapid deployment.
Why Choose Permanent Magnet Synchronous Pumps?
✔ Proven Performance – Engineered for high efficiency and reliability in extreme conditions.
✔ Customizable Options – Available in different power ratings (11kW–55kW) and flow rates (250–1000 m³/h).
✔ Easy Maintenance – Simple design allows for quick repairs and long service life.
✔ Export-Ready – Compliant with international shipping standards, suitable for global markets.
✔ Competitive Pricing – High value-to-cost ratio, making it ideal for government contracts & bulk buyers.
The Permanent Magnet Synchronous Motor Axial Flow Pump is the ultimate solution for flood control, irrigation, and industrial water transfer. With high flow rates, low energy consumption, and rugged construction, it is trusted by municipalities, farmers, and emergency responders worldwide.
🔧 Contact us today for quotes, customization, and bulk orders!"
Note: Specifications are based on standard models; custom sizes & motor voltages available upon request.
✅ Perfect for:
Government flood control projects
Agricultural water management
Municipal & industrial water systems
Emergency disaster relief
🚀Get your Permanent Magnet Synchronous Pump today for efficient, reliable water movement!"
